دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu

دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu
دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu

تصویر بزرگ :  دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu

جزئیات محصول:
Place of Origin: DongGuang China (Mainland)
نام تجاری: ZeHui Machinery
گواهی: CE
Model Number: ZHF-2017
پرداخت:
Minimum Order Quantity: one set
قیمت: $125000-138000
Packaging Details: foam machine Automatic continuously foam making machine packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1×20GP 2×40HQ
Delivery Time: 45 days after receive down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2 sets per month
توضیحات محصول جزئیات
نوع محصول: دستگاه فوم سازی مداوم خودکار وزن: 25 تن
رای دادن: 380 ولت پمپ ماشینی: پمپ وایکینگ آمریکا/ژاپنی
نوع فوم: جعبه سرریز و سر اسپری سیستم کشش RS: سیستم RSpulling با فیلم پلاستیکی
بشقاب پاییز: 7 بخش قابل تنظیم خودکار سرعت کف کردن: 2000r/min-7000r/min
نوار نقاله: برای تسمه نقاله 50 متری فوم ورق بلند
برجسته:

دستگاه فوم سازی epe

,

دستگاه تزریق فوم pu

,

دستگاه فوم سازی epe فشار پایین



Low Pressure Epe Foam Machine , Pu Foam Manufacturing Machines With Siemens Investor





The ZHF-2017 Horizontal Continuously foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.



Our company is focusing in making foam production line. So far, we have sold our production lines to our foreign customers in the countries like Indonesia, Philippines, Vietnam, Pakistan, Syria, Iran, Uganda, Ghana, Kenya, Sudan, Ethiopia and White Russia, etc.



We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.



Main specification



Oven Length 18m
Foam Height 1.0-1.25m
Foam Width 1.0-2.25m
foam desity 8-200kg/m³
total power 130KW
inner coveyer length 18m
side board adjustable width 0.98-2.3m
conveyer belt speed 0-8m/min
fall plate seven section adjustable
total output 100-300kg/min
machine dimension L35× W4.2 ×H3.2m


Main technique specification:



Dimension Total length 35m×Total width 4m×Total Height 3m
Foaming material Group 13 groups, man-machine interface, both manual and automatically computer control
Foaming width 980mm~2250mm
Foaming height Max 1200mm
Foaming density 8Kg/m³~100kg/m³
Foaming speed 2000r/min~7000r/min
Max total output 300kg/min
Material spraying way ① The way of down sprayer head (upper, down, front, back can be adjusted) ② the way of trough overflow pipe.
Controlling way of foaming

①PLC controlling, can continuously foaming two different formulas in one time

②All inverter controlling foaming and work in phase with the production line

③Oven declining board height and width can be adjusted by control box.

④Oven side links width can be adjusted by control box

Mixing –head motor 37kw
Total power About 90kw


How is the packing of the machine?



The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.



How many container will be needed for the whole set of machine?



For the standard 13 groups of Automatic continous foam machine Total three containers is enough 2×40HQ+1×20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

We will try the best way to pack all the machine well and also save the freight cost.



Our Services



1.We will help to design the layout of the machine that put in your factory.

2.We will send 2-4 experience engineers to install and testing the machines.

3.We will teach your engineer how to operate the machine and how to maintain the machines.

4.We will give you the machine operation manual and the best formulation for target products that you are going to make.

5.We will help to buy the best raw material for making the foam if you needed.



FAQ:



Q: How many days for the install and testing of the machine?



A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.



Q: For the cost of the engineer how much I need to pay?



A: You need to pay USD40 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.



Q:What kind of raw material tools we need to prepare for the testing?



A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.



Q: After the machine testing if we need some engineer to stay in our factory can you help to find?



A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.



Q:During the foaming if we have some problems abt the foam and the machine how can we do ?



A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.



The main part of the machine

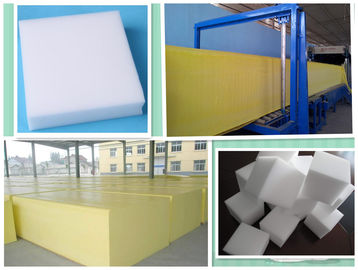

دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu 0

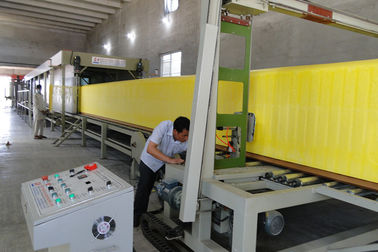

دستگاه ساخت فوم کم فشار Epe، دستگاه تزریق فوم Pu 1



automatic foaming machine line.pdf
