منطقه صنعتی تانگشی، شهر Gaobu، شهر DongGuan استان گوانگدونگ، چین | bella@zehuimach.com |
Place of Origin: | Guangdong, China (Mainland) |
نام تجاری: | ZHMACH |
گواهی: | CE |
Model Number: | ZHF-2017 |
Minimum Order Quantity: | one set |
---|---|
قیمت: | inquiry |
Packaging Details: | foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ |
Delivery Time: | 45days after receive downpayment |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 1.5 sets per month |
نوع محصول: | دستگاه فوم سازی خودکار به طور مداوم | برش بلوک فوم: | برش همزمان در حین کف کردن |
---|---|---|---|
پمپ ماشینی: | US VIKING /CHN شانگهای hangfa/JAN SHIMADZU | فرمولاسیون فوم: | ذخیره خودکار بیش از 200 مجموعه |
سیستم کشش R.S: | سیستم کشش R.S با فیلم پلاستیکی | روش کنترل ماشین: | PLC اتوماتیک و کنترل اینورتور |
بلوک برش: | تیغه و اره دندانه چاقوی دوبل نوع | منطقه فوم سازی: | برای مبل و کفش تشک مبلمان |
پمپ ها: | US. ایالات متحده Viking/ Chinese/ Japanese وایکینگ / چینی / ژاپنی | اینورتور: | زیمنس / دلتا / دانفوس |
برجسته: | ماشین آلات تولید فوم pu,خط تولید تشک فوم,دستگاه فوم سازی اتوماتیک PLC |
Automatic High Rebound Polyurethane Sponge Production Line with Digital Touch Screen
Product Description
The Foam making machine is a automatic continuous foaming machine for producing flexible polyurethane foam used in furniture, shoe material, packing, electron, garment and transportation industrial. It’s the ideal production equipment for large-scale foaming.
Main Specification
Oven Length | 18m |
Inner Conveyer length |
18m |
Foaming Height | 1.0-1.25m |
Side Borar Adjustable Width |
0.98-2.3m |
Foaming Width | 1.0-2.25m |
Conveyer Belt Speed |
0-8m/min |
Foaming Density | 8-100kg/m3 |
Fall Plate |
Six section adjustable |
Total Power | 130KW |
Total output |
100-300kg/min |
Main specification
Model | Pass Caliber |
Use |
Qty | Brand |
K-301L/75DA cross valve | G2″ |
POP, PPG,CaCO3,Foam |
3 | Korea |
K-301L/63DA p cross valve | G1″ | TDI foam | 1 | Korea |
K-301L/32DA cross valve | G½″ | Other small material, Flame retardant, Anti-yellow | 9 | Korea |
DK800 glass flow meter | 20-200 L/h |
AIR |
1 | China |
FA10-15 glass flow meter | 40~400L/H | H2O | 1 |
China |
FA10-25F glass flow meter | 150~1500L/H | MC | 1 |
China |
FA10-25F glass flow meter | 600~6000L/H | TDI | 1 | |
Transducer speed adjusted head | Φ25*2000mm | foam | 1 | Qianghui |

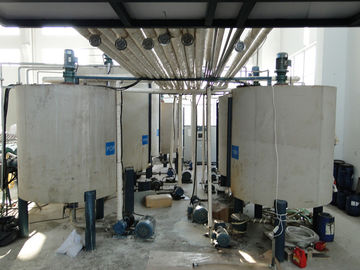

Material pot types: (The work pressure in the pot is normal pressure)
Type | Use |
Specification |
Qty |
Big material tank | PPG | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
Big material tank | POP | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system |
1 |
Big material tank | CaCo3 | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
Big material tank | TDI | 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system |
1 |
Big material tank | Flame retardant |
2m³/δ3m stainless steel, with filter system |
1 |
Big material tank | MC |
2m³/δ2mm stainless steel, with filter system |
1 |
Small material tank | Si | 180L/δ1mm stainless steel | 1 |
Small material tank | A-33 | 180L/δ1mm stainless steel, with filter system | 1 |
Small material tank | T9 | 180L/δ1mm stainless steel, with filter system | 1 |
Small material tank | H2O | 180L/δ1mm stainless steel | 1 |
Small material tank | Color | 180L/δ1mm stainless | 1 |
Small material tank | Anti-yellow | 180L/δ1mm stainless steel | 1 |
Small material tank | Black | 180L/δ1mm stainless steel | 1 |
Floor powder mixing tank | PPG, POP, Powder | 1.5m³/δ3mmA3 steel plate, with filter system | 1 |
Filter tank | POP, Powder |
1.5m³/δ4mmA3 steel plate |
1 |
1. We will help to design the layout of the machine that put in your factory.We will send 2-4 experience engineers to install and testing the machines.
2. We will teach your engineer how to operate the machine and how to maintain the machines.
3. We will give you the machine operation manual and the best formulation for target products that you are going to make.
4. We will help to buy the best raw material for making the foam if you needed.
Q: How many days for the install and testing of the machine?
A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.
Q: For the cost of the engineer how much I need to pay?
A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.
The main part of the machine
