منطقه صنعتی تانگشی، شهر Gaobu، شهر DongGuan استان گوانگدونگ، چین | bella@zehuimach.com |
Place of Origin: | Guangdong, China (Mainland) |
نام تجاری: | ZHMACH |
گواهی: | CE |
Model Number: | ZHF-2017 |
Minimum Order Quantity: | one set |
---|---|
قیمت: | inquiry |
Packaging Details: | foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ |
Delivery Time: | 45days after receive downpayment |
Payment Terms: | Western Union, L/C, T/T |
Supply Ability: | 1.5 sets per month |
نوع محصول: | دستگاه فوم سازی خودکار به طور مداوم | ولتاژ: | 3PAHSE 380V |
---|---|---|---|
پمپ ماشینی: | US VIKING /CHN شانگهای hangfa/JAN SHIMADZU | فلومتر: | دبی سنج شیشه ای |
سیستم کشش RS: | سیستم کشش R.S با فیلم پلاستیکی | روش کنترل ماشین: | PLC اتوماتیک و کنترل اینورتور |
بلوک برش: | تیغه و اره دندانه چاقوی دوبل نوع | ویژه: | ساخت افقی اتوماتیک |
پمپ ها: | US. ایالات متحده Viking/ Chinese/ Japanese وایکینگ / چینی / ژاپنی | اینورتور: | زیمنس / دلتا / دانفوس |
برجسته: | خط اکستروژن ورق فوم pe,تجهیزات تولید فوم,خط تولید فوم با ریباند بالا |

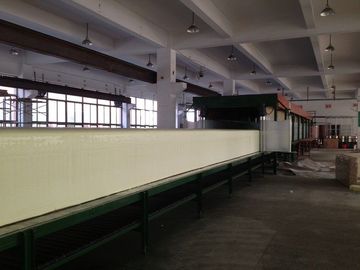

Full Automatic High Rebound Polyurethane Foam Production Line With PLC Digital Touch Screen
Product Description
This equipment is used in soft PU products.Fomaing Density Range : 8-70kg/CBM. The ideal Foam products are involved with Furniture,Shoes,Bra and Electricals field,also suitable for Mattresses,Sofa,Package,Cloths and Car industry.User can save over two hundred different of recipes,To adust and change them by user at any time.user can remote control it by internet that reduce production cost scientific and directly.PLC Digital Touch Screen or Electric Control System.----This machine can change the formulation no need stop machine,no need test flow,The degree of resistance to yellow can reach 3~5 international standard,cooperate the customer's request to offer different formular,and training the foaming engineer.
For the process of foaming:
Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process
Main specification
Model | Pass Caliber | Use | Qty | Brand |
K-301L/75DA cross valve | G2″ | POP, PPG,CaCO3,Foam | 3 | Korea |
K-301L/63DA p cross valve | G1″ | TDI foam | 1 | Korea |
K-301L/32DA cross valve | G½″ | Other small material, Flame retardant, Anti-yellow | 9 | Korea |
DK800 glass flow meter | 20-200 L/h | AIR | 1 | China |
FA10-15 glass flow meter | 40~400L/H | H2O | 1 |
|
FA10-25F glass flow meter | 150~1500L/H | MC | 1 |
|
FA10-25F glass flow meter | 600~6000L/H | TDI | 1 | |
Transducer speed adjusted head | Φ25*2000mm | foam | 1 | Qianghui |
Material pot types: (The work pressure in the pot is normal pressure)
Type | Use | Specification | Qty |
Big material tank | PPG | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
Big material tank | POP | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system |
1 |
Big material tank | CaCo3 | 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system | 1 |
Big material tank | TDI | 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system |
1 |
Big material tank | Flame retardant | 2m³/δ3m stainless steel, with filter system | 1 |
Big material tank | MC | 2m³/δ2mm stainless steel, with filter system | 1 |
Small material tank | Si | 180L/δ1mm stainless steel | 1 |
Small material tank | A-33 | 180L/δ1mm stainless steel, with filter system | 1 |
Small material tank | T9 | 180L/δ1mm stainless steel, with filter system | 1 |
Small material tank | H2O | 180L/δ1mm stainless steel | 1 |
Small material tank | Color | 180L/δ1mm stainless | 1 |
Small material tank | Anti-yellow | 180L/δ1mm stainless steel | 1 |
Small material tank | Black | 180L/δ1mm stainless steel | 1 |
Floor powder mixing tank | PPG, POP, Powder | 1.5m³/δ3mmA3 steel plate, with filter system | 1 |
Filter tank | POP, Powder | 1.5m³/δ4mmA3 steel plate | 1 |
