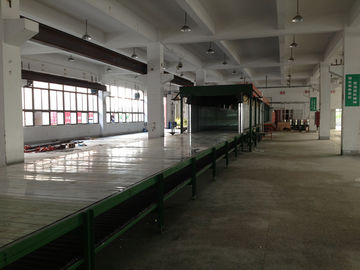

Flexible Low Pressure Mattress Foam Production Line With PLC Control , 60Kg / m³


(1)Main technique specification:

1, Dimension:Total length 33m×Total width 4m×Total Height 3m,Roller ( 3 m)
2, Foaming material Group: 13 groups, man-machine interface, automatically computer control
3, Foaming width: 980mm～2250mm
4, Foaming height: Max 1200mm
5, Foaming density: 8Kg/m³～100kg/m³
6, Foaming speed: 2000r/min～7000r/min
7, Max total output:300kg/min
8, Material spraying way:
① The way of down sprayer head (upper, down, front, back can be adjusted)
② the way of trough overflow pipe.
9, Controlling way of foaming:
①PLC controlling, can continuously foaming two different formulas in one time
②All inverter controlling foaming and work in phase with the production line
③Oven declining board height and width can be adjusted by control box.
④Oven side links width can be adjusted by control box.
10, Mixing –head motor: 37kw

Machine Main Specifications:



(2)Transducer Types


Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery or sight confirmed L/C.

Installation and Start-up: 2 technicians will be assigned to coordinate installation,commissioning and
training, cost for flight and suitable accommodation plus USD50/day will be charged additionally.

Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
